Field survey · cattle gate replacement

Measure the opening before naming the gate.

Give a supplier one record that separates the existing clear opening, intended users, swing path, ground condition and hinge-latch interfaces.

Planning example—not a final size, structural design or installation instruction. A qualified local professional must approve post capacity, bracing, hardware, animal movement, vehicle clearance and installation.

One opening.
Three observed heights.

This invented survey records top, middle and lower observations without turning them into a selection rule. A supplier or qualified designer still decides the finished gate, allowances, posts and hardware.

Four-part quote record

What should the field survey preserve?

Record the existing condition first. Do not confuse nominal product width with post-to-post opening, or assume old hardware and posts can be reused.

Keep measurements as observations. Photograph the tape position and identify where each dimension was taken. Do not round the field condition into a product size before supplier review.

Observe

Name the gate location, cattle group, largest intended vehicle or implement, normal travel direction and any shared lane duty.

Measure

Record clear opening observations at identified heights, ground profile, present gate height and obstructions—with dated photographs.

Interface

Show both posts, hinge and latch faces, available swing arc, fence terminations and how the opening relates to cattle and equipment routes.

Quote

Ask the supplier or designer to state finished product size, allowances, compatible hardware, post/bracing assumptions and unresolved field checks.

What does the worked survey count?

Existing gate opening documented1

Clear-opening height positions observed3

Hinge and latch interfaces photographed2

Supplier or designer review owner1

USDA NRCS guidance supports planning gates around intended animals, equipment, layout and local specifications. Penn State handling guidance also shows why gate position, partial opening and animal sightlines matter. None of those sources makes one width or one reused post correct for every ranch.

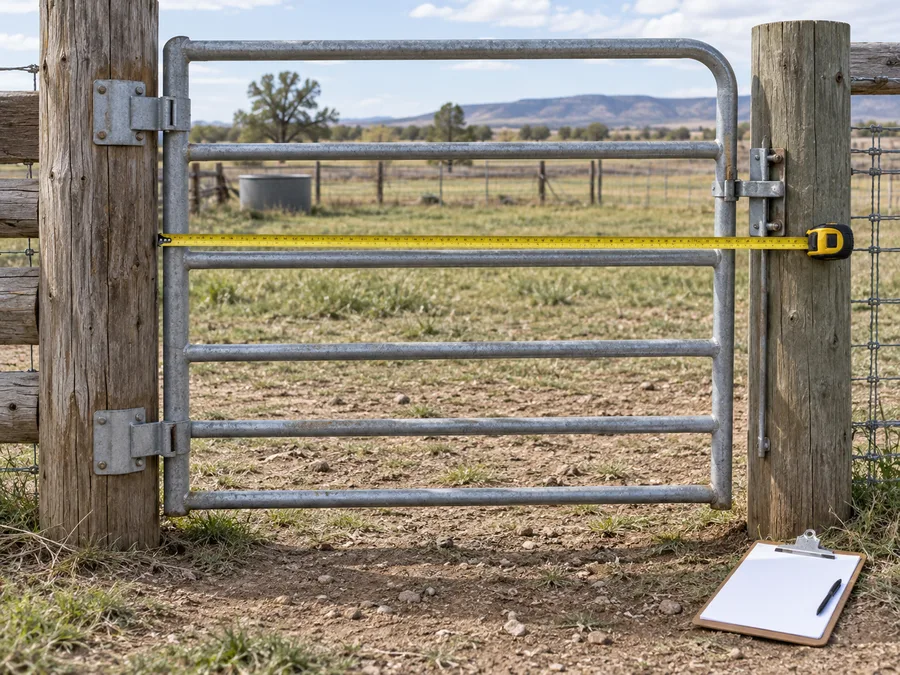

Representative existing cattle gate with hinge and latch posts, tape measure across the opening and blank survey clipboard — Representative measurement scene, not a sizing or installation approval. Record where each observation was taken; supplier and qualified local review determine the finished assembly.

Is the replacement survey ready to quote?

Opening recordIntended usersHardware and postsSwing and ground

Questions producers and buyers ask

How do I measure an existing gate opening?

Record clear post-to-post observations at identified heights, photograph the tape position, and note ground and obstructions. Keep those observations separate from the product width.

Is nominal gate width the same as the post opening?

Not necessarily. Hardware, allowances and product conventions vary. Give the supplier the observed opening and ask them to state the required finished assembly.

What gate size works for cattle and a tractor?

There is no universal number. Record the largest intended user, travel route and operating clearance, then obtain site-specific review.

Can the existing posts be reused?

Do not assume so. Their material, condition, embedment, bracing, loads and new hardware need qualified structural review.

Which hinge and latch details matter?

Show post faces, existing attachments, gate direction, latch approach, fence termination and the clear swing arc. Let the supplier identify compatible hardware.

What photos should accompany a quote?

Include full opening, both post faces, hinge and latch close-ups, ground line, swing area, approach lanes and any nearby fence or overhead obstruction.

Evidence and limits

These sources support documenting gate locations, intended animals and equipment, route context and safe movement. They do not approve a universal opening, post, brace, hardware set or animal-handling layout.

USDA NRCS: Fence Conservation Practice Standard 382External government source · plans, gate locations, installation details and material quantities USDA NRCS: Trails and Walkways Standard 575External government source · openings and widths based on intended animals and equipment Penn State Extension: Restraint and Treatment FacilitiesExternal university source · gate arrangement and movement context; facility dimensions are not transferred here Penn State Extension: Animal Handling TipsExternal university source · partially opened gates, sightlines and escape-path context
