Worked layout record · cattle pasture

Map the grazing system before you count fence.

Separate the dependable perimeter from movable divisions, then prove that every proposed area has water, access, a safe movement route and a named operator.

Planning example—not a grazing prescription or final fence design. A local grazing adviser, fence supplier and responsible land manager must confirm animal needs, forage decisions, water capacity, electrical design and site constraints.

A map-first decision

Four layers make the sketch reviewable.

This invented example is deliberately modest: one permanent perimeter, one protected central lane, two water points and movable internal lines. The counts explain the record structure; they do not prescribe a paddock size or number.

Boundary → water → movement → reset

If one layer is assumed, the materials list is premature. Record the unresolved condition instead of hiding it inside a fence quantity.

Layer 01 · fixed

Start with what must hold without the temporary line.

Mark the legal or agreed property boundary, road frontage, stream or pond exclusions, handling areas and any location where a physical fence is required. A portable electric division is a management tool; it is not automatically a substitute for the perimeter.

Permanent perimeter and existing condition
Gates, roads, neighbors and public interfaces
Sensitive areas and permit or setback questions
Fallback area if a movable line is unavailable

Line type APermanent perimeter

Verify ownership, condition and containment purpose.

Line type BProtected interface

Mark roads, water, lanes and non-grazing areas.

Do not inferFence adequacy

Species, pressure and site conditions need local review.

Record ownerBoundary check

Name who inspects and closes exceptions.

Layer 02 · movable

Draw divisions as operating positions, not permanent promises.

Number each proposed cross-fence position and show where its reel, posts, connection point and passage will be staged. The farm's grazing plan—not this page—sets when the line moves and how much forage is allocated.

Hold point

Do not order from line length alone. Confirm conductor, post, connector, gate-handle, reel and energizer compatibility as one system, following manufacturer instructions.

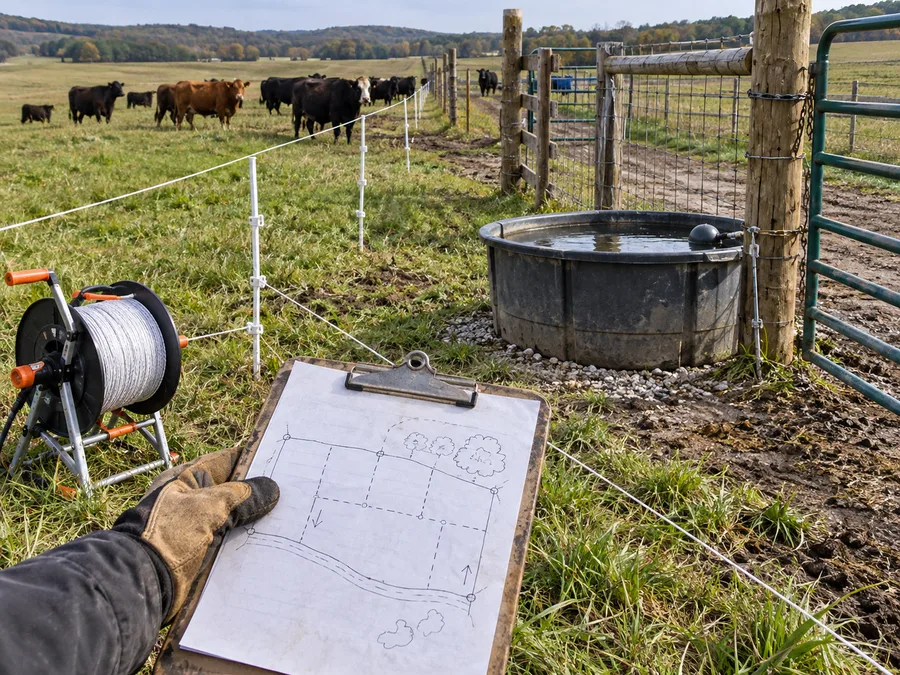

Representative cattle pasture subdivision scene with temporary polywire, reel, water trough, gate and an unlabeled planning sketch — Representative planning scene, not a customer installation or engineered layout. Field conditions and the operating plan control the actual system.

Layers 03–04 · water and movement

Test every area from the animal's route.

For each proposed grazing area, trace cattle from entry to water and back out without crossing an occupied division or relying on an unrecorded opening. Record the water source, service route, gate or lane, wet-ground exception and responsible person.

Water point ID and areas served
Gate or lane used for cattle movement
Equipment and emergency access kept clear
Back-fence or previous-area access decision
Wet, steep or sensitive ground exception

Permanent perimeter systems1

Recorded movable-line positions4

Water points shown on the sketch2

Named layout and reset owner1

These are example counts only. USDA NRCS says paddock size depends on herd, season, grazing duration and forage; university sources likewise treat fencing, water and movement as linked planning decisions.

Is the subdivision record ready for supplier review?

Questions producers ask before subdividing pasture

How many paddocks should cattle have?

There is no universal count. Herd demand, forage availability, season, target grazing duration, recovery and labor all matter. Use this record to map options; have the grazing plan set the count.

Can temporary fence replace a perimeter fence?

Do not assume so. Temporary electric fence is commonly used for internal subdivisions, while the dependable perimeter and higher-risk interfaces require a separately reviewed containment decision.

Should water be planned before cross-fence?

Yes. Water location and the route cattle use to reach it can determine whether a proposed division works. A line that blocks water or creates repeated travel through another area is not ready.

Do paddocks need to be equal size?

No. Shape, forage and seasonal growth differ. Record the physical layout separately from allocation and recovery decisions so the grazing plan can change without confusing the fence plan.

What belongs on the pasture sketch?

Fixed boundaries, numbered movable positions, gates, lanes, water, sensitive areas, power or connection points, staging locations and the owner of each check.

What should be checked before each move?

Follow the farm's operating procedure: confirm receiving-area readiness, water, gates, temporary-line condition, connection and cattle route, then record the person who completed the reset.

Evidence and limits

These sources support linking fence layout with water, movement, site conditions and operating flexibility. They do not set this farm's stocking rate, paddock acreage, recovery period, energizer size, voltage or final fence specification.
