Open the crossing review
Do not treat a drainage as ordinary fence line.
A crossing has two systems: the fixed fence on stable ground and the replaceable or movable section where water and debris pass. Survey the route first, make inspection access explicit, and escalate hydraulic, structural or permitting questions locally.

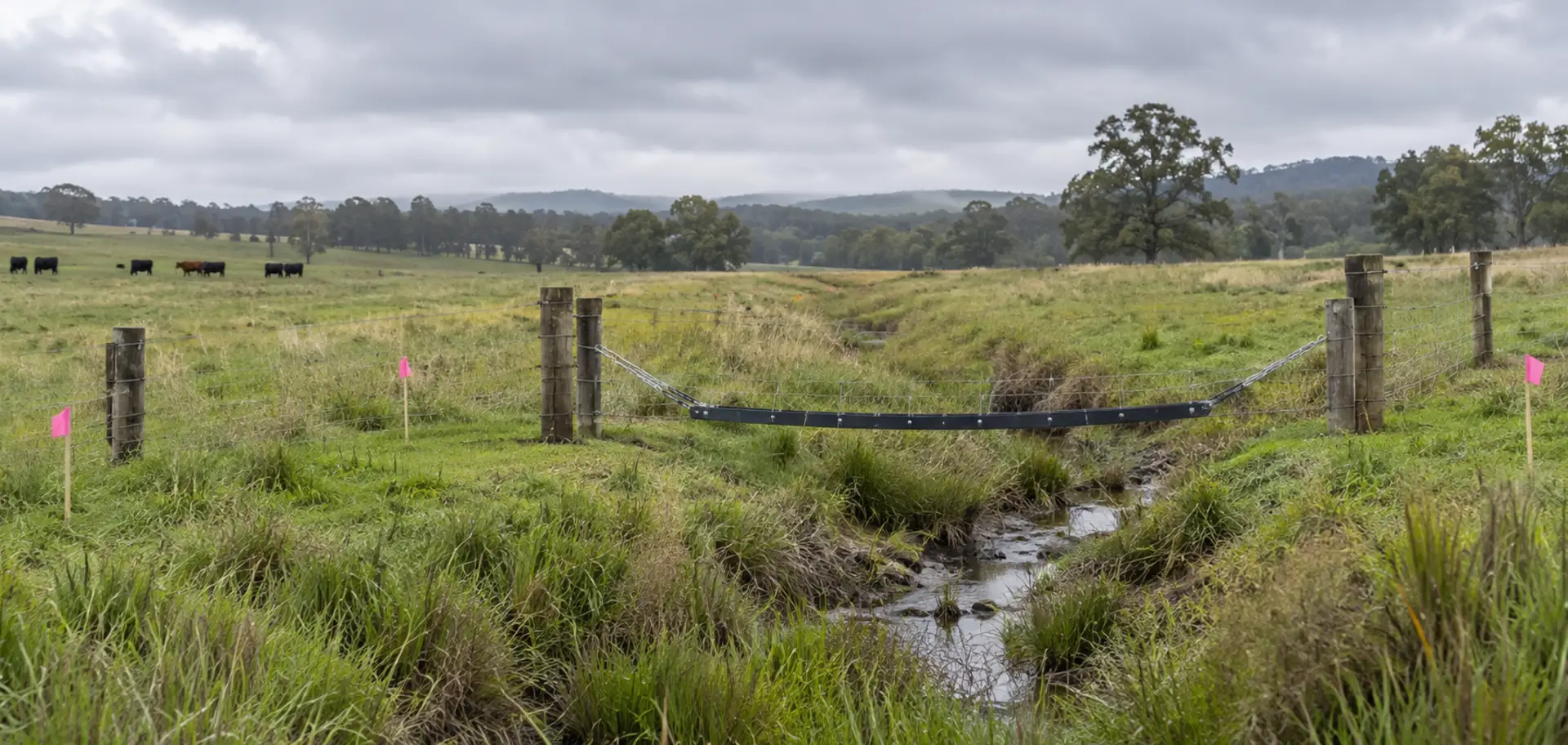

Representative planning scene—not a construction detail. The page does not size anchors, gates, cables, streamers, culverts or foundations. Flow, debris, erosion, wildlife, permits and livestock pressure require site-specific review.
Separate the decisions before selecting materials
The worked example uses a 40 ft bank-to-bank survey zone inside a 720 ft route. Those lengths explain recordkeeping only; they do not approve a crossing design.
Avoid the crossing when practical
NRCS planning guidance says to avoid irregular terrain where possible. Compare a reroute or setback before adding a water-gap detail. Fence placement too close to moving water can increase damage and reduce streamside benefits.
Protect the main line
Keep stable anchor and brace decisions outside the replaceable crossing zone. A crossing that yields or moves should not automatically transfer damage into the permanent line. The connection detail requires local design.
Crossing brief
Total route720 ft
Crossing survey zone40 ft
Fixed line outside zone680 ft

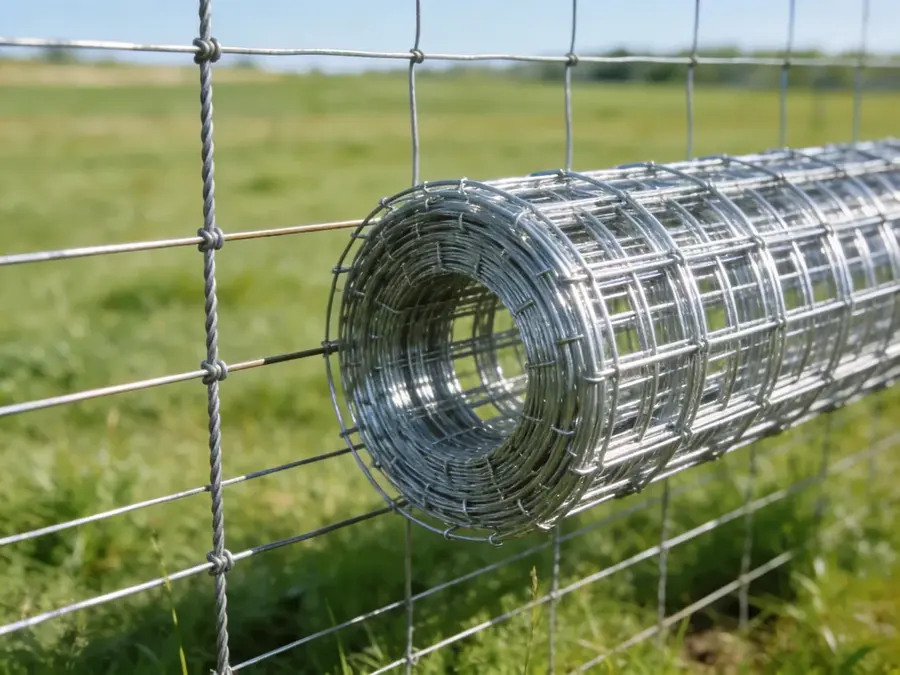

The 40 ft zone is not ordered as ordinary mesh. Its anchors, crossing element and spare/repair parts remain separate pending local review.

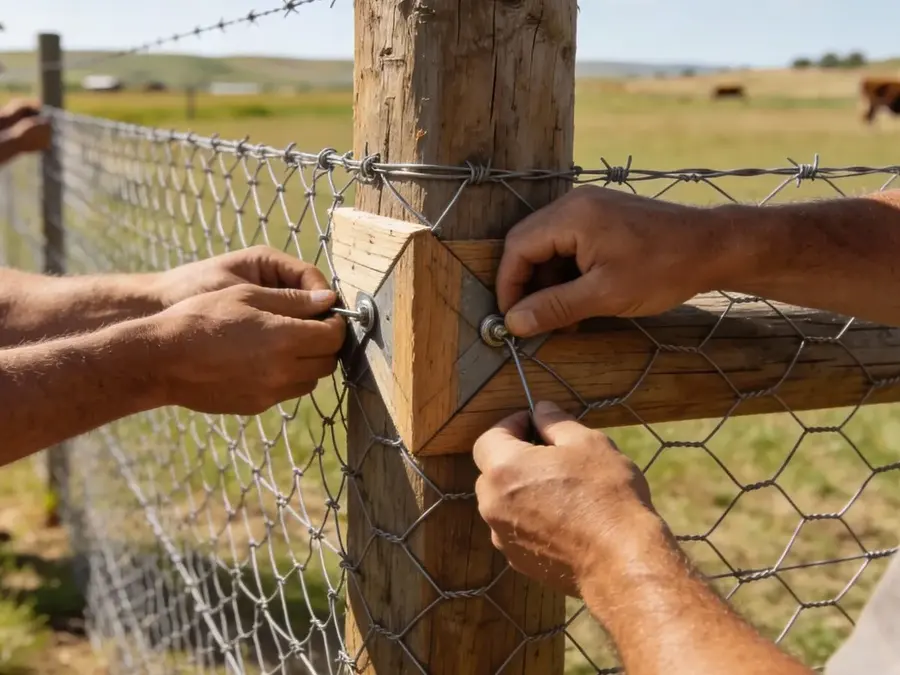

Inspection is part of the design
- Debris caught on or upstream of the crossing
- New scour, bank erosion or exposed posts
- A crossing panel blocked partly open
- Broken, loose or displaced connectors
- Livestock tracks showing a new bypass
How much local review does this crossing need?
Questions landowners and buyers ask
Can woven wire cross a creek or drainage?
It may collect debris and suffer flood damage. Penn State discourages woven wire in streambank locations prone to debris. Treat the crossing as a separate, locally reviewed component.
What is a water gap or flood gate?
It is a controlled crossing element below or separate from the main fence. Different hanging, hinged, breakaway and electrified concepts exist, but site conditions determine what is appropriate.
Where should the fence cross?
Compare avoidance or relocation first. Alignment, bank stability, channel movement, debris and inspection access matter; do not select the crossing from a photograph alone.
Can I copy a standard drawing?
No universal drawing fits every drainage. NRCS national standards direct users to local technical guides, and Penn State says stream crossings need professional design for flood stability.
What must be checked after a storm?
Inspect debris, erosion, posts, anchors, connectors, crossing movement and new livestock bypasses. Close access or add temporary control if the boundary no longer works.
Does this page cover permits?
No. Work in or near streams, wetlands and drainage features may require local environmental, conservation or permitting review. Confirm this before disturbing the site.
Evidence and limits
USDA NRCS Fence 382 requires a plan view, installation details, quantities and ongoing inspection, while explicitly directing users to local Field Office Technical Guides. Penn State explains that stream crossings require professional design and post-flood inspection, and its streambank-fencing guidance warns that woven wire is prone to catching debris and flood damage. These sources support a survey-first brief, not a universal crossing detail.
USDA NRCS: Fence Conservation Practice Standard 382External government source · plan, details, quantities, maintenance and local-standard boundaryUSDA NRCS: Fence 382 Practice OverviewExternal government PDF · avoid irregular terrain and repair water gaps after disturbancePenn State Extension: Stream CrossingsExternal university source · professional design and post-flood inspectionPenn State Extension: Stream Bank FencingExternal university source · debris, flood damage, setbacks and maintenance
No YouTube video was added: a demonstration of one flood-gate detail could be copied outside its hydraulic, structural and regulatory context. The page intentionally stops at survey, role separation and escalation.
