Worked mixed-livestock case

Plan one boundary for cattle and goats.

Start with the harder-to-contain animal and assign each fence component a job. This example combines a dependable physical boundary, a goat-tight lower zone, an inside electric offset and deliberate gates—without pretending head count determines fence length.

Illustrative, not a universal specification. The dimensions and 5% allowance are invented so the arithmetic can be audited. Confirm fence height, openings, conductor positions, energizer and local requirements for your animals and site.

01 · Define roles

One boundary, four separate jobs

Cattle pressure, goat climbing or reaching behavior, horns, predators and vehicle movement do not disappear when animals share a field. A useful plan separates what must remain permanent from what can remain flexible.

Outer boundary

Dependable physical containment and property-line control.

Lower zone

Close enough to reduce goat passage and head access.

Inside offset

A smooth electrified deterrent that keeps animals off the mesh.

Internal control

Permanent or temporary divisions chosen separately from the perimeter.

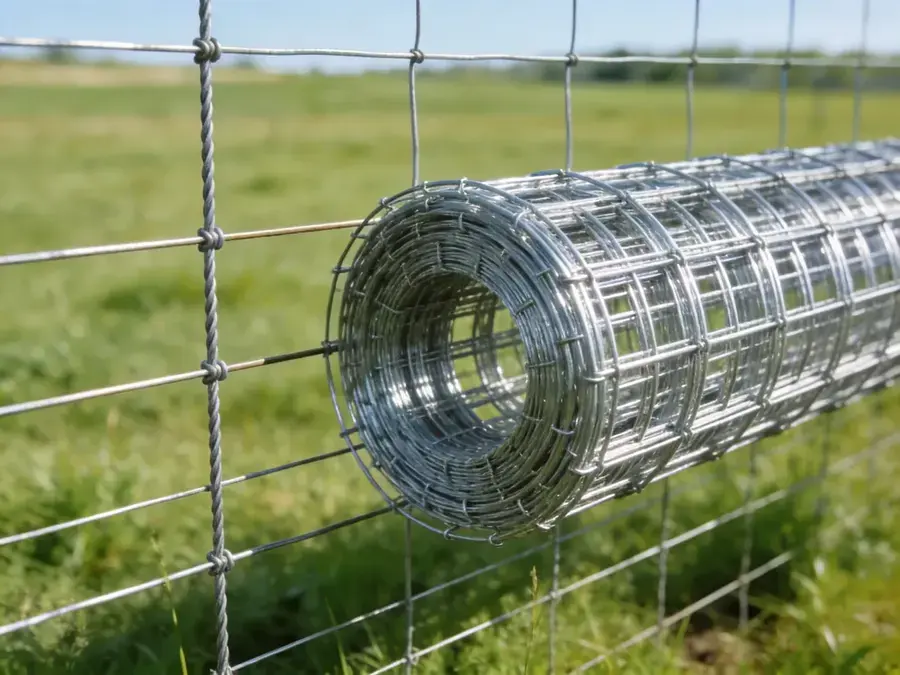

Woven livestock fence illustrating the physical containment role of a shared cattle and goat boundary — Representative product-family imagery. Mesh, height, wire diameter, coating and opening pattern must be confirmed for the actual herd and site.

02 · Map the fixed line

The worked layout

This example uses a 1,600 ft measured outer route and one 600 ft permanent divider. Two gate openings total 36 ft. Temporary grazing subdivisions are deliberately excluded from the woven-wire roll calculation.

Horns trigger an entanglement review before mesh selection.
Gates and lanes must work for both large cattle and smaller goats.
Water, shade and handling flow are mapped before the divider is fixed.
Temporary electric lines are planned as management tools, not treated as the secure perimeter.

03 · Audit quantity

Calculate fixed woven-wire rolls

Measured perimeter1,600 ft

Permanent divider+ 600 ft

Gate openings− 36 ft

Net fixed line2,164 ft

Selected 5% allowance2,272.2 ft

330 ft rolls, rounded up7 rolls

The allowance is a visible planning choice, not a rule. Posts, braces, gates, offsets, energizer and temporary conductors are separate schedules.

Replace the assumptions

04 · Control contact

The offset is a behavior layer

A smooth electric offset can discourage cattle leaning and goats climbing or rubbing on the physical fence. It is not a substitute for a suitable perimeter. Train animals in a controlled area, keep vegetation from draining the system, and test performance at the fence—not only at the energizer.

Do not electrify barbed wire. Conductor position, visibility, grounding, warning signs and energizer selection require local design and manufacturer guidance.

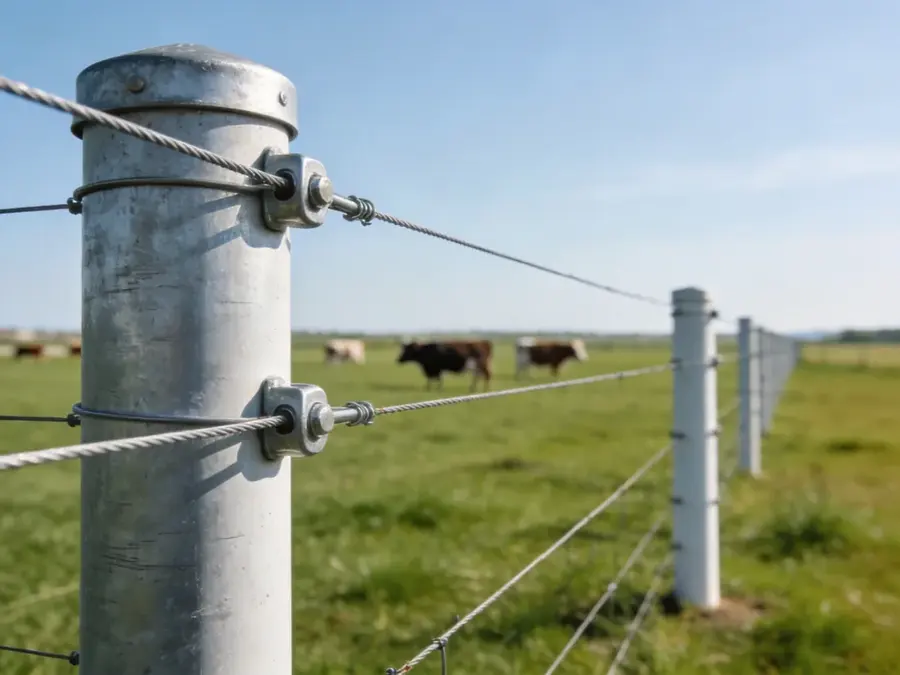

Smooth electric fence conductors used to illustrate a behavioral deterrent layer inside a physical livestock fence — Representative product-family imagery. The photo illustrates the electric role; it does not prescribe conductor count, height, voltage or grounding for a mixed herd.

Questions buyers and farmers ask

Can one fence hold cattle and goats?

Yes, but design the shared boundary around the more demanding containment behavior. A cattle-only layout may leave lower openings, climbing opportunities or gate gaps that goats exploit.

Can I adapt an existing cattle fence?

Often, after a route-by-route inspection. Check the lower section, washouts, gates, corners and interfaces; then decide whether goat-tight mesh, repairs or a smooth inside offset can address the verified gaps.

Woven wire, electric, or both?

A dependable woven perimeter plus an inside electric deterrent is a common role-based combination. Temporary electric divisions may be useful after training, but they do not automatically replace the permanent boundary.

What changes when goats have horns?

Horned goats increase entanglement risk. Review mesh openings, feed placement, reaching behavior and inspection frequency, and avoid layouts that invite animals to push their heads through.

Do cattle and goats need separate gates?

Not always. The shared gate must control the smaller animal at the bottom and sides while remaining wide, strong and well placed for cattle, vehicles and handling flow.

How many acres does this example assume?

None. Stocking and forage capacity depend on local production, animal demand, season and management. The example starts only from measured fence lines.

Evidence, sources and limits

Virginia Cooperative Extension recommends mapping first, using dependable permanent perimeter fencing and planning gates and movement before subdivision. Penn State notes that goats require tight fencing and that an inside electric strand can discourage climbing and entanglement. Oklahoma State emphasizes containment, protection, maintenance and durability, and warns against electrifying barbed wire. These sources support the decision sequence; the numbers above remain an invented example.

Virginia Cooperative Extension: Small Ruminant Grazing SystemsExternal university source · perimeter, mapping, gates, lanes and subdivision roles Penn State Extension: Meat Goat ProductionExternal university source · tight fencing, inside electric deterrent and horn entanglement Oklahoma State Extension: Fencing for GoatsExternal university PDF · cattle-fence limitations, system selection and barbed-wire warning Virginia Tech: Electric FencingExternal university source · training and physical-versus-psychological barrier roles

No YouTube video was added: the page's role map, photographs and calculator cover the decision without depending on an unverified installation demonstration. Always apply local codes, animal-welfare practice, utility marking and manufacturer instructions.
