Home/Resources/Muddy-season water access

Control point map · wet-season access

Keep the dry route visible.

Rain can turn one watering approach into a cattle bottleneck, a service-access conflict or an inviting bypass around the fence. Record normal, wet and fallback routes before changing gates or ordering materials.

Planning example—not drainage, earthwork, water-system or construction design. Local conservation, soil, water and fence professionals must confirm any heavy-use-area treatment, runoff control, utilities and structural details.
One trough.
Three ground conditions.

This invented example separates normal access, saturated-ground access and a documented fallback. It organizes observations and fence interfaces without prescribing pad dimensions, aggregate, slope, drainage or animal capacity.

Map the cattle route, service route and bypass

Walk the site after rain. Mark hoof traffic, standing water, rutting, overflow, gate swing, equipment approach and any place cattle can leave the intended lane. Keep the inspection and emergency route visible even when the normal entrance is temporarily closed.

Cattle routeApproach, drinking space, exit direction and crowding point under wet conditions.
Service routeGate, vehicle turn, shutoff access and maintenance path that must remain usable.
Wet boundaryObserved saturated area, runoff direction and fence edges affected by soft ground.
FallbackAn approved alternate water and movement route if the primary approach is closed.

Observe conditions; do not improvise a civil design

  • USDA NRCS identifies heavy-use-area protection as a way to stabilize places frequently used by animals, people or vehicles and protect water quality when properly located.
  • NRCS watering guidance connects animal traffic, firm footing, facility access and protected controls, but detailed construction remains site-specific.
  • Oklahoma State describes controlled livestock access and hardened approaches around some water points; its dimensions and methods are regional examples, not universal specifications.
  • Fence planning should record closures, gates, bypasses and responsibilities while drainage and surface design stay with qualified local professionals.

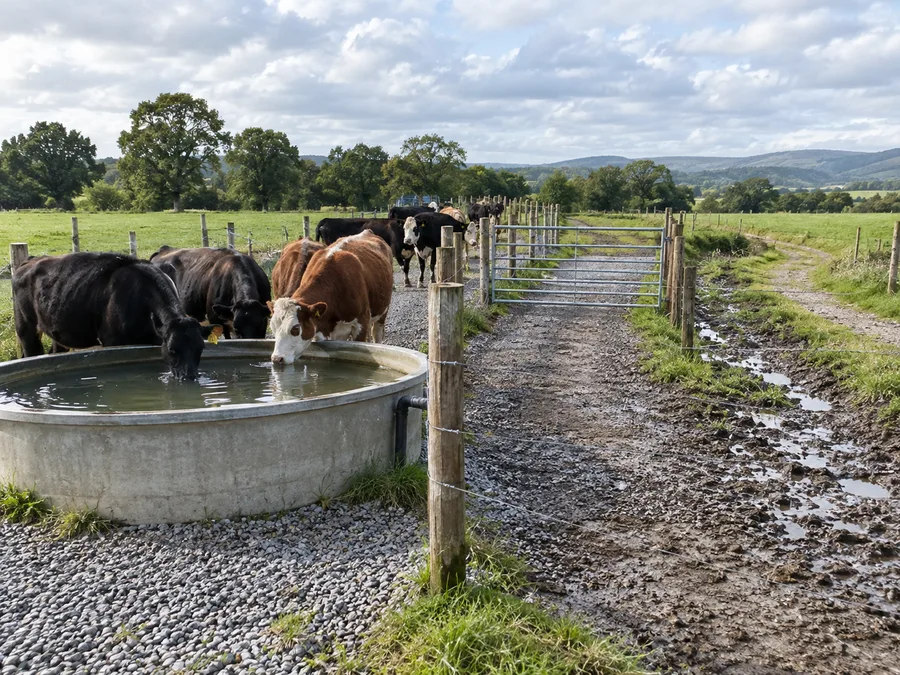

Representative wet-season cattle water point with surfaced approach, muddy edge and separate gate route
Representative planning scene. It illustrates competing cattle, service and wet-ground routes; it is not a customer installation, drainage design, water-quality test or approved heavy-use-area detail.

Count affected interfaces, not just fence length

Existing fence beside the wet approach requiring condition review510 ft
Cattle and service openings requiring separate wet-state checks3
Observed soft-ground or runoff interfaces on the field sketch4
Fallback water route held outside the material count1

Do not convert these invented numbers into pad, drainage or fence specifications. Confirm seasonal extent, soil, runoff, utilities, cattle pressure, equipment, permissions and the approved local design before final selection.

Is the wet-season control map ready?

Questions producers and buyers ask

Can fence alone fix mud around a trough?

No. Fence can change access and protect an area, but mud also involves traffic, soil, water, runoff and surface management. Record the interface and obtain a local conservation or engineering review.

Should cattle have one narrow approach?

A narrow route may control access but can also concentrate traffic and crowding. The suitable arrangement depends on herd behavior, facility capacity, footing and the approved site plan.

Where should the service gate go?

Place it only after recording the largest service vehicle, turn, shutoff or inspection task, cattle flow and wet-ground limits. This page does not prescribe a universal position or width.

Can a gravel pad be added from this example?

No. NRCS and extension sources show heavy-use-area concepts, but material, depth, drainage, slope and environmental requirements require site-specific design and local approval.

What if cattle walk around the planned lane?

Mark the bypass and determine why it appears under wet conditions. A new wire segment may redirect traffic, but the route, ground and water-point causes must be reviewed together.

Does this page calculate drinking space?

No. It does not size the trough, water supply, storage, refill, drinking perimeter or herd capacity. Those are separate water-system and livestock-management decisions.

Evidence and limits

NRCS and university materials support stable high-use areas, protected water access, route management and local design. Their regional dimensions and construction examples are not copied into a universal recipe. This page admits only the planning need to map routes, wet limits, closures and responsibilities.

USDA NRCS: Heavy Use Area ProtectionExternal government source · stabilizing muddy high-traffic areas, changing travel lanes and temporary livestock exclusionUSDA NRCS: Watering Systems for Serious GraziersExternal government source · traffic, footing, watering-area protection and protected controls; local design still requiredUSDA NRCS: Watering Facility Standard 614External government source · facility function, associated practices and local Field Office Technical GuideOklahoma State Extension: Pond Management for LivestockExternal university source · limited-access watering points, heavy traffic and protected approaches; regional examples require local review

No YouTube video is embedded. A heavy-use-area demonstration can show construction sequence at one site, but it cannot establish this soil, runoff, wetland status, cattle pressure, utilities, permissions or approved detail. The three-state route map is the safer reusable answer.
