Field notebook · watering interface

Fence the routes around the water.

A watering point joins cattle movement, maintenance access, a water system, a concentrated-use surface and often a sensitive-area boundary. Count those interfaces before counting fence material.

Planning example—not a watering-system, runoff or structural design. The invented quantities below organize a supplier conversation. Local conservation, water-system and fence professionals must review the actual site.

Read the site as four field stops

The example assumes one existing perimeter, one pasture-side drinking edge and a separate service approach. It does not decide water capacity, animal demand, pipe sizing, pad design, drainage compliance or final fence construction.

1. Mark who reaches the point—and from where

Draw animal flow and service flow as different routes. The cattle path should show the active paddock, any shared lane, the drinking edge and the return path. The service route should show how a vehicle reaches the valve, float, drain or cleaning side without relying on the same narrow opening used by cattle.

PaddockWhich group is meant to use this point?
ApproachWhere do cattle concentrate before drinking?
ServiceHow does inspection and cleaning access arrive?
ExclusionWhich source, bank or equipment area stays protected?

2. Put a responsibility beside every interface

  • The livestock fence controls the intended cattle route; it does not prove the trough, pipe, valve or power system is adequate.
  • A service gate belongs on the maintenance route and remains a separately reviewed opening.
  • Overflow, erosion, mud and concentrated traffic are site conditions for conservation review, not fence-product assumptions.
  • Any pond, stream, wetland, utility or public access boundary stays outside a generic fence detail.

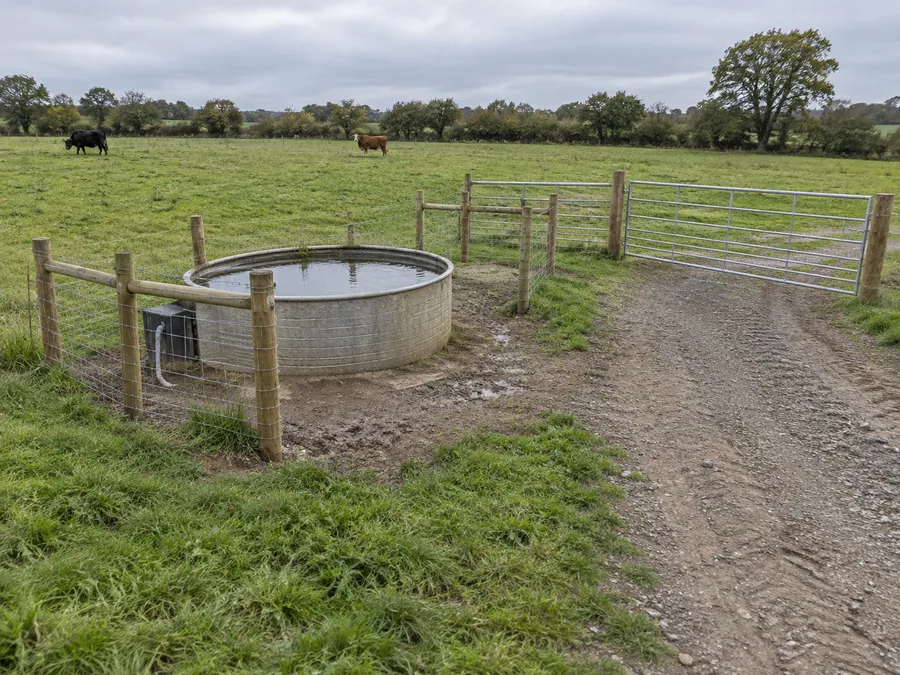

Representative pasture water trough beside a fence enclosure and maintenance gate
Representative planning scene. It illustrates a trough, fence, gate and service approach; it is not a customer installation, water-capacity check, runoff approval or construction detail.

3. Count materials by role, not by one total

The invented record below prevents the perimeter, protected equipment edge and access opening from becoming one ambiguous line item.

Existing perimeter section to verify760 ft
New livestock-control return lines in the sketch145 ft
Service opening requiring its own gate review1
Water, overflow and heavy-use interfaces held for local design3

Do not order “905 ft of one fence” from this example. Posts, braces, gate hardware, conductor interfaces, visibility aids and any protective enclosure must be tied to the actual drawing, livestock, terrain and local specification.

4. Is the field record ready?

Questions producers and buyers ask

Should a trough sit on a fence line?

It can in some systems, but the actual location depends on cattle flow, access space, water supply, paddock use, ground condition and maintenance. Treat the fence-line arrangement as a local design decision.

Does the fence protect the water source?

A fence can control access to a source or sensitive area, but source protection also depends on location, drainage, overflow and management. Do not treat wire alone as a water-quality solution.

How wide should the service gate be?

This page gives no universal width. Record the largest vehicle, turning approach, maintenance task, terrain and gate hardware, then obtain site-specific advice.

What about mud around the trough?

Mark the used area, drainage direction, overflow and seasonal condition. Heavy-use-area treatment and runoff control require local conservation and design review.

Can several paddocks share one point?

They may share a watering point through lanes or controlled access, but the route can concentrate traffic and create gate conflicts. Map every active paddock and operating state before selecting the fence layout.

Does this example size the water system?

No. It does not calculate animal demand, storage, refill rate, pipe, pressure, freeze protection or drinking space. Those remain with qualified local advisers and the approved system design.

Evidence and limits

Penn State describes watering facilities as part of pasture and resource management. Missouri Extension connects fence, paddock, lane and water-system layout but its detailed examples are regional and must not become universal specifications. NRCS standards explicitly direct users to local technical guides and connect Watering Facility 614 with Fence 382 and other site-specific practices.

Penn State Extension: An Introduction to Watering FacilitiesExternal university source · watering functions, site context and associated conservation practicesUniversity of Missouri Extension: Dairy Grazing—Fence and Water SystemsExternal university source · paddock, lane, gate, water-distribution and maintenance relationships; regional examples require local reviewUSDA NRCS: Watering Facility Conservation Practice Standard 614External government source · local Field Office Technical Guide requirement and associated-practice boundariesUSDA NRCS: Fence Conservation Practice Standard 382External government source · mapped fence layout, gates, quantities and ongoing inspection

No YouTube video is embedded. Official videos can show one watering facility in use, but they cannot establish this pasture’s animal demand, route, overflow, soil, utilities, permissions or approved fence detail. The mapped field record closes the more important decision gap.
