Control point map · cattle arrival

Separate the route, not just the pen.

A closed gate does not create a complete arrival plan. Record unloading, resident-herd contact, independent feed and water, observation, treatment access and the approved release route before counting fence materials.

Planning example—not veterinary, biosecurity or construction approval. A veterinarian and local authorities must define animal-health protocols. A qualified fence professional must confirm the physical assembly for the cattle, site and handling pressure.
One arrival group.
Four controlled interfaces.

This invented example turns an arrival pen into a map of contacts and movements. It does not prescribe quarantine duration, tests, vaccination, treatment, stocking density or a universal fence detail.

Map every route before selecting wire

Draw the truck-to-pen movement, routine caretaker route, veterinarian or treatment access, and the eventual release route. Then mark where people, tools, feed, water, manure, vehicles or cattle could cross between the arrival group and the resident herd.

ArrivalTruck approach, unloading gate and a closeable route that does not pass through the resident herd.
SeparationFence lines, ground gaps and shared boundaries that could allow direct contact.
ServiceDedicated or deliberately sequenced feed, water, tools and caretaker access.
ReleaseAn approved route that opens only after the animal-health decision is documented.

Keep animal-health and fence duties distinct

  • USDA APHIS advises isolating newly introduced cattle in relevant disease-control guidance, but the applicable protocol depends on cattle class, origin, current orders and veterinary direction.
  • Missouri Extension recommends keeping new arrivals apart from resident cattle and from shared water or feed; this supports separate interfaces, not a universal pen specification.
  • A fence can control routes and contact. It cannot diagnose disease, determine release timing or replace cleaning, testing and animal-care procedures.
  • Show who owns each decision: veterinarian, farm manager, livestock handler, fence supplier and any regulator.

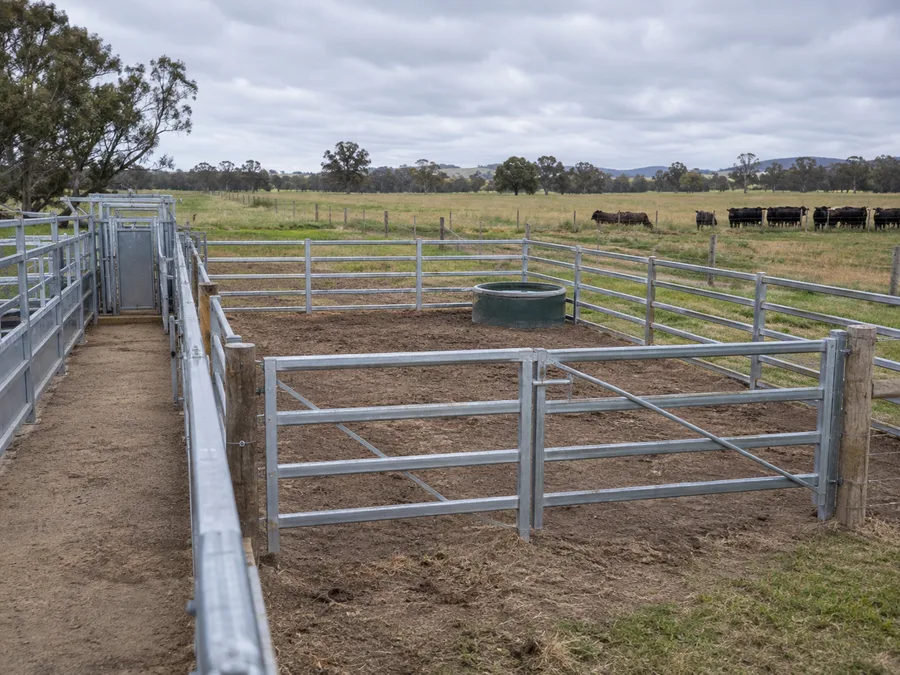

Representative cattle isolation paddock with separate gate, water trough and handling lane
Representative planning scene. It illustrates separation, service access and an independent trough; it is not a customer installation, veterinary approval or proof of disease control.

Count interfaces, then confirm the assembly

Arrival-pen perimeter to inspect for cattle pressure and direct-contact points420 ft
Closeable cattle openings on arrival and release routes2
Independent feed-and-water interfaces held for local review2
Service, observation and emergency access routes on the sketch3

These invented quantities are a completeness check, not a bill of materials. Final posts, mesh, wire, gates, braces and attachments depend on cattle size and behavior, handling pressure, terrain, equipment and locally approved plans.

Is the arrival control map ready?

Questions cattle buyers and producers ask

Do newly purchased cattle need a separate pen?

Separation is a core biosecurity tool, but the correct protocol depends on herd risk, origin, animal class and current veterinary or regulatory guidance. This page only maps the fence and movement interfaces.

How long should cattle stay isolated?

This page does not set a period. Some official guidance names specific periods for particular cattle and disease contexts; the herd veterinarian must set the applicable plan and release criteria.

Can the new group share a fence line?

A shared line can permit direct contact. Record it explicitly and ask the veterinarian whether the planned separation is acceptable before treating one fence as adequate.

Can both groups use the same trough?

Missouri Extension advises keeping new arrivals from the same water and feed used by resident cattle. Record independent or deliberately managed service rather than assuming one trough is acceptable.

What gates belong on the sketch?

Show unloading, routine service, treatment or emergency access, and release. Each opening needs its own operating state, responsible person and field-confirmed hardware.

Does this example specify pen size or fence type?

No. It identifies decision inputs. Final dimensions and materials require cattle numbers, class, temperament, equipment, terrain, local rules and an approved handling plan.

Evidence and limits

USDA APHIS and Missouri Extension support isolation, controlled contact and separate service as biosecurity concepts. Their disease- and production-specific details do not become universal instructions here. This page translates only the route and responsibility implications into a fence-planning record.

USDA APHIS: Dairy Farm Biosecurity MeasuresExternal government source · newly introduced cattle, dedicated equipment and caretaker sequencing; scope is disease-specific dairy guidanceUSDA APHIS: Bovine BrucellosisExternal government source · isolate and test new or returning animals; veterinary and regulatory responsibilities remain externalUniversity of Missouri Extension: Care of Newly Purchased Feeder CattleExternal university source · separate pen, feed, water, observation and treatment accessUniversity of Missouri Extension: Herd Health ProgramsExternal university source · new-animal introduction risk and veterinarian-directed quarantine/testing decisions

No YouTube video is embedded. A farm walk-through could show one isolation pen, but it cannot establish this herd’s disease risk, veterinary protocol, release criteria, regulatory duties or required fence assembly. The contact-and-route map closes the transferable planning gap.
