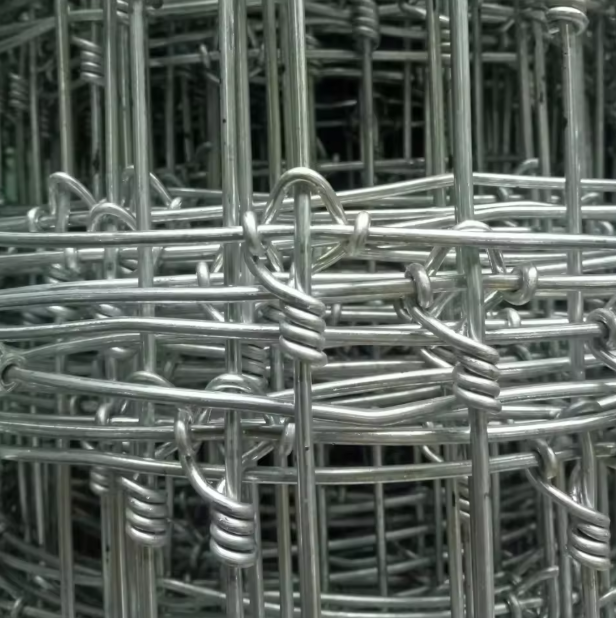

Fixed knot fence wire, also known as solid lock fence or locked knot fencing, represents the strongest and most durable solution for livestock containment where maximum impact resistance and structural integrity are paramount. As one of the three primary woven cattle fence wire knot configurations, fixed knot construction employs a third piece of wire that wraps under pressure around both the horizontal line wire and solid vertical stay wire at each intersection, forming an exceptionally rigid connection that delivers unmatched strength and durability.
Unlike hinge joint fencing where knots can slip under pressure, or welded mesh where welding spots break on impact, fixed knot fence wire provides maximum structural integrity through its locked knot design. The knot cannot unwind or loosen even under extreme pressure, making it the preferred choice for bulls, bison, large cattle, and high-impact livestock applications where fence failure is not an option.
Product Specifications
| Item | Specification |
|---|---|
| Product Name | Fixed Knot Cattle Fence Wire (Solid Lock Fence) |
| Knot Type | Fixed Knot (Locked Knot) |
| Material | High tensile steel wire |
| Surface Treatment | Hot-dipped galvanized |
| Line Wire Diameter | 2.5 mm (10 ga) / 2.0 mm (12.5 ga) |
| Stay Wire Diameter | 2.0 mm (12.5 ga) / 1.8 mm (14 ga) |
| Knot Wire Diameter | 2.24 mm (13 ga) |
| Stay Wire Type | Solid one-piece vertical stay wire |
| Fence Height | 800 – 2440 mm (32 – 96 inches) |
| Vertical Stay Spacing | 75 mm (3 inch) / 150 mm (6 inch) / 300 mm (12 inch) |
| Horizontal Line Spacing | Graduated spacing: 75-100 mm bottom, increasing to 150-200 mm top |
| Roll Length | 50 m / 100 m / 200 m / 330 m |
| Tensile Strength | Line Wire: 1200 – 1400 MPa (High Tensile) Stay Wire: 820 – 970 MPa (Medium Tensile) Knot Wire: 400 – 550 MPa (Low Tensile) |
| Zinc Coating | Class 1: 60 – 80 g/m² (8-12 years lifespan) Class 3: 230 – 275 g/m² (20-30 years lifespan) |
| Weight per Roll | 80 – 486 kg (depending on height and length) |
All specifications can be customized according to your requirements. For detailed technical parameters across different cattle fence wire specifications, consult our specification guide.
Zinc Coating Options
| Zinc Coating Type | Zinc Weight | Lifespan | Price Level | Best For |
|---|---|---|---|---|
| Class 1 (Standard) | 60 – 80 g/m² | 8 – 12 years | Economy | Temporary fencing, dry climates, budget projects |
| Class 3 (Premium) | 230 – 275 g/m² | 20 – 30 years | Recommended | Permanent installations, humid climates, coastal areas |
The hot-dipped galvanization process creates a metallurgical bond between zinc and steel, providing sacrificial corrosion protection. Class 3 galvanized fixed knot fence wire offers 2.5 to 3 times the service life of Class 1 coating, making it the industry standard for permanent livestock fencing. The combination of high tensile wire and Class 3 galvanization provides fence lifespan of 20-40 years in typical agricultural environments. In humid climates, Class 3 galvanization can add 10 to 15 years of service life before rust appears compared to Class 1 coating.
Fixed Knot Structure Advantage
Locked Knot Design
The fixed knot utilizes a separate piece of wire that is twisted under high pressure around both the horizontal line wire and the solid vertical stay wire at each intersection. This creates a locked connection that firmly grips both wires, preventing any movement or slippage and maintaining absolute fence integrity under the heaviest livestock pressure. The knot cannot unwind under tension, ensuring the fence maintains its structural form throughout its service life.
Solid Vertical Stay Wire
Fixed knot construction features continuous solid vertical stay wires that provide superior vertical strength compared to hinge joint designs. This one-piece design allows the fence to stand unsupported even before installation tensioning, and prevents the vertical wires from being forced apart by animals attempting to push through. The solid stay combined with the locked knot creates the most rigid woven wire fence structure available.
Key Benefits
- Maximum Impact Resistance: The locked knot and high tensile wire combination creates the strongest woven wire fence available, with breaking strength of 1,380 lbs per line wire
- No Knot Slippage: Unlike hinge joint fencing, the fixed knot cannot move, slide, or loosen under pressure, maintaining consistent mesh spacing and fence integrity
- Superior Vertical Strength: Solid stay wires combined with locked knots prevent horizontal displacement and vertical separation even under extreme animal pressure
- Fewest Posts Required: The rigid structure allows post spacing of 20-30 feet on level terrain, reducing material and labor costs by 40-50% compared to traditional field fence
- Longest Service Life: High tensile wire with Class 3 galvanization provides 3-4 times the lifespan of conventional hinge joint fencing
- Predator Protection: The locked structure with graduated mesh spacing prevents predators from breaching the fence or forcing wires apart
- No Re-tensioning Required: High tensile wire maintains proper tension for decades without the annual re-tightening required for low-tensile fencing
- Smooth, Animal-Safe Surface: The compact locked knot design has no protruding wire ends or sharp edges, protecting animal hides and preventing injuries
Comparison with Other Knot Technologies
Fixed knot fence wire represents the premium tier of woven wire fencing technology, offering significantly greater strength and durability than both hinge joint knot and S knot fence wire. The locked knot design provides maximum vertical and horizontal holding strength, making it the only woven wire option suitable for bulls, bison, and aggressive livestock. While hinge joint fencing allows knot movement and S knot provides moderate rigidity, fixed knot creates an immovable structure that maintains its form under extreme pressure. The trade-off for this superior strength is higher material cost, but the extended lifespan and reduced maintenance deliver superior long-term value.
Application Scenarios
Fixed knot cattle fence wire delivers optimal performance in the most demanding livestock and property protection applications:
Primary Applications
- Bull and Heavy Cattle Operations: The maximum impact resistance and locked knot structure make fixed knot the only woven wire suitable for bulls, breeding cattle, and aggressive livestock that exert extreme pressure on fencing
- Bison and Exotic Animal Containment: High tensile strength and rigid structure provide the security required for bison, elk, and exotic game animals where fence failure could result in significant losses
- Commercial Livestock Operations: Large-scale cattle ranches and feedlots rely on fixed knot for perimeter fencing where long-term durability and minimal maintenance are critical economic factors
- Predator Exclusion: The locked knot construction with tight bottom mesh spacing effectively prevents coyotes, wolves, wild hogs, and other predators from breaching the fence
- Deer and Game Fencing: Originally developed for deer containment in New Zealand, fixed knot excels at containing or excluding deer, elk, and game animals
- High-Pressure Areas: Gates, feeding areas, breeding pens, and other high-traffic locations where livestock congregate and exert concentrated pressure on fencing
- Uneven Terrain with Heavy Livestock: The combination of flexibility from tension curves and rigidity from locked knots allows fixed knot to perform on hills and valleys while maintaining structural integrity under heavy animal pressure
- Permanent Boundary Fencing: Property lines and perimeter fencing for ranches, farms, and large acreages where 20-40 year service life and minimal maintenance justify the initial investment
- Solar Farm and Industrial Security: The strength and durability of fixed knot make it suitable for protecting solar installations, vineyards, orchards, and commercial agricultural operations
Fixed knot fence wire is the recommended choice for any application where livestock pressure is high, fence failure is unacceptable, or long-term durability justifies premium investment. For light livestock or low-pressure interior paddocks, more economical options such as S knot or hinge joint fence wire may provide adequate performance at lower cost.
Comparison with Other Knot Types
This comparison helps buyers quickly identify the most suitable knot type based on livestock pressure, terrain, and budget.
| Knot Type | Strength Level | Flexibility | Vertical Stay Type | Animal Safety | Best For | Cost Level |
|---|---|---|---|---|---|---|
| Hinge Joint | Medium | Very High | Wrapped individual wires | Good | Light livestock, economic fencing | Economy |
| S Knot (Square Deal) | High | High | Solid one-piece stay | Excellent | Horses, sheep, goats, general cattle | Mid-Range |
| Fixed Knot (Solid Lock) | Very High | Medium | Solid one-piece stay | Excellent | Bulls, bison, large cattle, high-impact areas | Premium |
When to Choose Fixed Knot Fence Wire
Select fixed knot fence wire when your operation requires:
- Maximum Impact Resistance: Bulls, bison, aggressive cattle, or heavy livestock that exert extreme pressure on fencing require the locked knot structure that cannot be displaced or broken
- Zero-Tolerance for Fence Failure: High-value livestock operations, breeding facilities, or applications where escaped animals create significant liability or financial loss
- Longest Service Life: Permanent installations where 20-40 year lifespan with minimal maintenance justifies higher initial investment, delivering superior total cost of ownership
- Predator Protection: Operations threatened by coyotes, wolves, wild hogs, or other predators benefit from the locked structure that cannot be forced apart or breached
- Minimal Long-Term Maintenance: High tensile fixed knot requires no re-tensioning or annual maintenance, saving significant labor costs over decades of service
- Extended Post Spacing: The superior strength allows 20-30 foot post spacing, reducing installation material costs by 40-50% compared to traditional field fence
- Commercial Scale Operations: Large ranches, feedlots, and commercial farms where fence performance directly impacts operational efficiency and profitability
Choose more economical options when pressure is moderate: S knot fence wire provides excellent performance for horses, sheep, goats, and general cattle at 25-35% lower cost. Hinge joint fence wire offers adequate containment for light livestock and interior paddocks at the lowest cost. For budget-conscious projects with low to medium livestock pressure, these alternatives deliver appropriate performance without premium investment.
Performance on Different Terrain Types
The deep tension curves crimped into fixed knot line wires create spring action that allows expansion and contraction with temperature changes while absorbing animal impacts. This design provides excellent performance on rolling hills and sloped pastures, though not as flexible as hinge joint construction. Fixed knot automatically relieves high-pressure areas while remaining rigid where needed, preventing the folding and sagging common with lighter fencing. The locked knot structure maintains consistent mesh spacing and fence integrity regardless of terrain variations. For optimal performance on challenging terrain, proper post placement and tensioning techniques detailed in our wire spacing and tension design guide are essential.
Manufacturing and Factory Information
- Factory Type: Professional woven wire fence manufacturer with dedicated fixed knot production lines
- Production Experience: 10+ years specializing in high tensile fixed knot fence manufacturing
- Production Lines: Automatic fixed knot weaving machines with precision knot forming and high-pressure locking technology
- Monthly Capacity: 50,000+ rolls across all knot types and specifications
- Quality Control: Wire diameter inspection per batch, zinc coating thickness testing (per ASTM A-641), tensile strength verification on all wire types, knot lock strength testing, pull-out resistance testing
- Manufacturing Process: Wire drawing → galvanization → automatic knot weaving with pressure locking → tension curve crimping → quality inspection → packaging
Our factory maintains stable quality through ISO-certified production processes, ensuring on-time delivery and factory-direct pricing without distributor markups. Each fixed knot undergoes pressure testing to verify the locked connection meets strength specifications before shipment.
Quality Standards and Certification
- Standards Compliance: ASTM A-116 (Woven Wire Fence Fabric) / EN 10223-3 (European standard for wire mesh fencing)
- Galvanization Standard: ASTM A-641 (Zinc-Coated Steel Wire) – Class 3 coating meets or exceeds 230 g/m² zinc weight
- Wire Quality: ASTM A-853 (Steel Wire for General Use) for high tensile line wire, medium tensile stay wire, and low tensile knot wire
- Inspection Protocol: Wire diameter measured with precision micrometers (±0.05mm tolerance), zinc coating thickness tested via weight-per-unit-area method, tensile strength verified through destructive testing on random samples from each wire type
- Knot Strength Testing: Fixed knot lock strength and pull-out resistance tested to ensure secure attachment under extreme livestock pressure without knot movement or wire displacement
Each production batch undergoes rigorous testing before shipment, with test certificates available upon request. High tensile wire must meet minimum 1200 MPa tensile strength specification.
Packaging and Container Loading
Packaging Method
- Each roll wrapped with waterproof kraft paper or PE film for moisture protection during ocean transport
- Exterior woven polypropylene bag with product label indicating specifications, height, line count, and stay spacing
- Steel banding or plastic strapping to secure roll shape during transport and handling
- Pallet packing available on request for forklift handling and warehouse storage
- Custom packaging available for large orders including shrink-wrap and edge guards for export
Container Loading Capacity
| Fence Specification | Roll Length | Weight per Roll | 20GP Container | 40HQ Container |
|---|---|---|---|---|
| 0.8 m height (32″) – 8 line | 100 m (330′) | 80 – 120 kg | 200 – 240 rolls | 420 – 480 rolls |
| 1.2 m height (48″) – 13 line | 100 m (330′) | 165 – 245 kg | 120 – 160 rolls | 260 – 340 rolls |
| 1.5 m height (60″) – 15 line | 100 m (330′) | 220 – 290 kg | 100 – 130 rolls | 220 – 280 rolls |
| 2.4 m height (96″) – 20 line | 100 m (330′) | 290 – 410 kg | 70 – 100 rolls | 160 – 220 rolls |
Exact loading quantity depends on fence height, roll length, wire diameter, vertical stay spacing, and mesh pattern. Mixed container loading available for diverse project requirements. Heavier fixed knot construction results in lower rolls per container compared to hinge joint fencing of similar dimensions.
Installation Guidelines for Fixed Knot Fence Wire
Post Spacing Requirements
Fixed knot fence wire with locked knot construction and solid vertical stays allows for maximum post spacing compared to other woven wire types:
- Line Post Spacing: 20-30 feet (6-9 meters) on level terrain with high tensile wire; reduce to 15-20 feet on hills, valleys, or with soft soil conditions
- Corner and End Posts: Heavy-duty braced assemblies required to handle extreme line wire tension from high tensile fixed knot construction
- Inline Braces: Required every 1,320 feet (400 meters) for 6-12 inch stay spacing; every 800 feet for 3 inch stay spacing
- Terrain-Based Adjustments: Install additional posts or line bosses at peaks and valleys on uneven ground to maintain proper fence alignment and tension distribution
Tension and Installation Tips
The tension curves crimped into fixed knot line wires allow the fence to handle thermal expansion and contraction while absorbing impact. Proper tensioning is critical—only remove 50% of the tension curve during installation. Over-tensioning straightens crimps and can damage the grain structure of high tensile wire, reducing its spring-back capability. Under-tensioning causes sagging and reduces impact absorption. High tensile fixed knot wire requires stretching equipment capable of applying 200-250 pounds of tension per line wire. The locked knot design means tension is distributed evenly across the entire fence structure. Understanding proper wire spacing and tension design ensures optimal fence performance and the decades-long service life fixed knot is designed to deliver.
Installation on Uneven Terrain
Fixed knot fence wire performs well on rolling hills and sloped terrain when properly installed. Install the fence to follow terrain contours rather than bridging low spots, which creates stress points. The rigid locked knot structure maintains consistent mesh spacing while the tension curves provide flexibility for ground contour changes. Always staple high points first, then pull the fence down into valleys and staple low points to ensure proper fence shape. Adjust fence angle at corner posts to match slope direction, ensuring all line wires maintain proper tension. The combination of locked knot rigidity and tension curve flexibility allows fixed knot to automatically adjust to pressure variations across uneven topography while maintaining superior structural integrity compared to other woven wire types.
Wire Spacing and Tension Behavior
The performance of fixed knot fence wire depends significantly on proper line wire spacing and tension management. The graduated horizontal spacing design—typically 75-100mm at the bottom increasing to 150-200mm at the top—addresses different livestock behaviors and pressure points while providing predator protection.
Smaller animals and predators exert pressure primarily at lower fence levels, necessitating tighter mesh spacing near the ground. Larger livestock such as cattle, bulls, and bison create concentrated pressure at mid to upper levels. The fixed knot design with locked connections and solid vertical stays maintains absolutely consistent spacing under this variable pressure, preventing any horizontal wire displacement or vertical separation even under extreme impact.
The deep tension curves crimped into line wires serve multiple critical functions. During installation, they allow controlled stretching to achieve proper fence tautness without exceeding 50% curve removal. After installation, these crimps act as tension buffers and shock absorbers. When temperature fluctuates between summer heat and winter cold, the crimps expand and contract without overstressing the wire. When animals impact the fence, the crimps compress slightly and then spring back, dissipating energy and preventing permanent deformation or wire breakage. This spring action combined with the immovable locked knot creates a fence that is simultaneously rigid and resilient.
The high tensile wire specification in fixed knot construction maintains consistent tension for decades without re-stretching. Unlike low-carbon wire that stretches 10-14% and requires annual re-tightening, high tensile wire stretches less than 4% and holds its tension throughout its 20-40 year service life. This characteristic, combined with the locked knot structure, eliminates the ongoing maintenance burden associated with conventional field fence.
For detailed guidance on optimizing tension across different terrain types and livestock applications, consult our comprehensive resource on wire spacing and tension design principles.
Customization Options
We support OEM and customized fixed knot fence wire production to meet specific project requirements:
- Fence Height: Any height from 800mm to 2440mm (custom heights beyond standard range available for special applications)
- Wire Diameter: Line wire: 2.0-3.0mm; Stay wire: 1.8-2.5mm; Knot wire: 2.0-2.5mm (specify gauge or metric measurement)
- Roll Length: 50m, 100m, 200m, 330m, or custom lengths for large projects requiring specific roll sizes
- Mesh Spacing: Custom horizontal and vertical spacing patterns to match livestock type, size, and predator control requirements
- Zinc Coating Level: Class 1, Class 3, or zinc-aluminum alloy coating (Galfan/Bezinal) for coastal or highly corrosive environments
- Tensile Strength: Standard high tensile (1200-1400 MPa) or custom specifications for extreme applications
- Stay Spacing: 3 inch, 6 inch, 12 inch, or custom vertical stay wire spacing based on application
- Packaging Method: Waterproof paper, PE film wrap, pallet loading, shrink-wrap, or custom export packaging for specific shipping requirements
- Private Labeling: Custom product labels and packaging with your brand information for distributors and resellers
Minimum order quantities apply for custom specifications. Contact us with your requirements for quotation and lead time. Large-scale ranch and commercial projects can benefit from specification consultation to optimize fence design for specific terrain and livestock conditions.
Cost Considerations and Economic Benefits
Initial Investment Comparison
Fixed knot fence wire typically costs 25-35% more than S knot fencing and 40-50% more than hinge joint systems on a per-roll basis. However, total installation costs and long-term ownership economics present a more favorable picture:
- Material Savings: Solid stay construction and locked knot strength allow 20-30 foot post spacing versus 8-12 feet for traditional field fence, reducing post quantities by 50-60%
- Labor Reduction: Fewer posts mean significantly less digging, setting, and alignment work, cutting installation labor by 40-50% compared to conventional fencing
- Longer Runs Between Braces: High tensile fixed knot allows inline braces every 1,320 feet compared to shorter intervals for lower-tensile options
- Comparable to Barbed Wire: Total installed cost of fixed knot is similar to five-strand barbed wire fencing while providing superior containment and safety
Long-Term Ownership Costs
Fixed knot fence wire delivers exceptional economic advantages over its service life:
- Maximum Durability: Class 3 galvanized high tensile fixed knot provides 20-40 years of service in typical agricultural environments, 3-4 times longer than conventional hinge joint fencing
- Zero Maintenance: High tensile wire maintains proper tension for decades without re-tightening; locked knot structure requires no knot repair or adjustment
- Minimal Repairs: Maximum impact resistance means significantly fewer repairs from livestock damage, reducing both material and labor costs over fence lifespan
- No Rust Maintenance: Class 3 galvanization eliminates painting or rust treatment for 20-30 years, saving ongoing maintenance costs
- Reduced Livestock Loss: Superior containment prevents escapes and the associated costs of lost animals, property damage, liability, and recovery time
- Lower Replacement Frequency: 20-40 year service life means replacing fence once instead of multiple times over the same period with lower-grade options
Total cost of ownership analysis consistently shows fixed knot fence wire delivering 100-200% better value than economy hinge joint fencing when amortized over 30-40 year service life. For bull operations, high-value breeding stock, or commercial ranches, the superior containment and minimal maintenance of fixed knot frequently pays for the initial investment premium within 5-10 years through reduced labor, repairs, and livestock loss.
Frequently Asked Questions
What is the main difference between fixed knot and other woven wire fence types?
Fixed knot fence wire uses a separate piece of wire tightly wrapped and locked around both the horizontal line wire and solid vertical stay wire at each intersection, creating an immovable connection. This locked knot cannot slip, move, or unwind under pressure, unlike hinge joint knots that flex and can shift position. The fixed knot combined with high tensile steel wire provides maximum impact resistance and structural integrity, making it 2-3 times stronger than hinge joint fencing and significantly more rigid than S knot designs. The trade-off is higher material cost, but for bulls, bison, and high-impact applications, fixed knot is the only woven wire option that provides adequate containment.
Why is fixed knot fence recommended for bulls and bison?
Bulls and bison exert extreme pressure on fencing through their size, strength, and aggressive behavior. Fixed knot fence wire is the only woven wire strong enough to withstand this pressure without failure. The locked knot structure prevents wires from being forced apart, the high tensile steel provides breaking strength of 1,380 lbs per line wire, and the solid vertical stays maintain fence integrity under impact. The breaking strength test of a single 12.5-gauge high tensile wire at 1,380 lbs far exceeds what any bull or bison can generate. Fixed knot maintains its shape and tension even after severe impacts, preventing escapes and the significant financial and liability costs associated with loose bulls or bison. For these applications, the higher cost of fixed knot is justified by the absolute requirement for reliable containment.
How long does fixed knot fence wire last compared to other fencing types?
Fixed knot fence wire with Class 3 galvanization typically lasts 20-40 years in most agricultural environments, 3-4 times longer than conventional hinge joint field fence. The combination of high tensile steel wire and thick zinc coating provides exceptional durability. High tensile wire resists stretching and maintains tension for decades without sagging, while Class 3 galvanization prevents rust for 20-30 years. Key factors affecting lifespan include zinc coating class (most important factor), climate humidity (coastal/humid areas see faster zinc depletion), soil acidity at ground level, animal pressure intensity, and installation quality. In dry climates with proper installation, Class 3 galvanized fixed knot can exceed 40 years of service. Even in humid environments, fixed knot outlasts barbed wire by 100-200% and conventional field fence by 200-300%.
Can fixed knot fence be installed on hilly or uneven terrain?
Yes, fixed knot fence wire performs well on hilly and uneven terrain when properly installed. The deep tension curves in horizontal line wires allow the fence to conform to ground contours while the locked knot structure maintains consistent mesh spacing. The key is following terrain rather than bridging low spots, and placing line posts or line bosses at peaks and valleys to control fence shape. Always staple high points first, then pull the fence down into valleys. The rigid locked knot structure prevents the folding and sagging common with lighter fencing on hills. While not as flexible as hinge joint construction, fixed knot provides the best combination of terrain adaptability and structural strength for heavy livestock on uneven ground. Proper installation techniques as detailed in our wire spacing and tension design guide are essential for optimal performance.
What post spacing is required for fixed knot fence wire?
Fixed knot fence wire with high tensile steel allows 20-30 foot post spacing on level terrain, significantly reducing installation costs compared to conventional field fence that requires 8-12 foot spacing. The locked knot structure and solid vertical stays provide the strength needed for extended post intervals. On rough terrain, hills, or in areas with soft soil, reduce spacing to 15-20 feet. A combination of T-posts and line bosses (structural pipe posts) works well, with a maximum ratio of 4 T-posts to 1 line boss. Heavy-duty braced assemblies are required at corners, ends, and inline every 1,320 feet for standard stay spacing. The reduced post requirements—typically 50-60% fewer posts than traditional field fence—represent significant material and labor savings that partially offset the higher per-roll cost of fixed knot fencing.
Is fixed knot fence wire suitable for horses, sheep, and goats?
Fixed knot fence wire works well for horses, sheep, and goats, particularly in 3-inch or 6-inch vertical stay spacing configurations. The smooth locked knot surface prevents hide scratching and wool snagging, while tight mesh spacing prevents hoof entrapment in horses and head catching in sheep and goats. However, for these lighter livestock applications, S knot fence wire often provides equivalent performance at 25-30% lower cost. Fixed knot is recommended for horses, sheep, and goats only when predator pressure is extreme, when terrain is very difficult, or when the fence must also contain larger cattle or bulls in mixed-species operations. For dedicated horse, sheep, or goat fencing without heavy cattle pressure, S knot delivers excellent animal safety and containment at more economical cost.
Does fixed knot fence require maintenance or re-tensioning?
Fixed knot fence wire constructed with high tensile steel requires essentially no maintenance or re-tensioning throughout its 20-40 year service life. High tensile wire stretches less than 4% compared to 10-14% for low-carbon wire, and maintains proper tension through temperature changes and minor impacts. The locked knot structure cannot loosen or slip, maintaining consistent mesh spacing without adjustment. Annual maintenance consists only of walking the fence line to check for damage from falling trees or vehicle impacts, and making spot repairs if needed. This minimal maintenance represents significant labor savings compared to conventional low-tensile field fence that requires annual re-tightening. The only maintenance consideration is vegetation control around the fence base to prevent moisture accumulation that could accelerate rust after zinc coating eventually depletes. This zero-maintenance characteristic makes fixed knot particularly valuable for remote fence lines or operations with limited labor resources.
How does the cost of fixed knot fence compare to barbed wire fencing?
On a per-linear-foot basis, high tensile fixed knot fence wire installed cost is comparable to five-strand barbed wire fencing. While fixed knot material costs more per roll, it requires 50-60% fewer posts than barbed wire due to its rigid structure. Five-strand barbed wire needs 12-15 foot post spacing, while fixed knot allows 20-30 feet. When post material and installation labor are factored in, total installed costs are similar. However, fixed knot provides dramatically superior performance: complete barrier without gaps, protection from livestock injuries common with barbed wire, effective containment of all animal sizes, predator exclusion, and 3-4 times longer service life. For cattle operations, the animal safety benefits alone justify choosing fixed knot over barbed wire. The only situations favoring barbed wire are extremely budget-constrained temporary fencing or very large-scale rangeland where livestock injury risk is accepted as economically tolerable.
What mesh spacing should I choose for fixed knot fence?
Mesh spacing selection depends on livestock type and size. For cattle and bulls, graduated spacing with 6-inch or 12-inch vertical stays provides adequate containment while remaining economical. For sheep and goats, use 3-inch or 6-inch vertical stay spacing with tighter horizontal spacing at the bottom—never use 6-inch spacing alone as goats will get heads caught between wires. For horses, 6-inch vertical spacing works well, though 2-inch x 4-inch non-climb patterns provide maximum hoof protection. For predator control, 3-inch vertical spacing with graduated horizontal spacing starting at 3 inches at the bottom prevents coyotes, foxes, and other predators from breaching the fence. For mixed operations with multiple livestock types, choose the tightest mesh spacing required for your smallest or most vulnerable animals. Consulting our cattle fence wire specifications guide helps match mesh patterns to specific applications.
How to Get Quotation for Fixed Knot Fence Wire
For fast and accurate quotation on fixed knot (solid lock) fence wire, please provide the following information:
- Fence Height: Specify in millimeters or inches (e.g., 1200mm / 48 inches)
- Number of Line Wires: Horizontal wire count (e.g., 13 line wires for 48-inch height)
- Vertical Stay Spacing: 3 inch, 6 inch, or 12 inch spacing between vertical stay wires
- Wire Diameter/Gauge: Line wire, stay wire, and knot wire specifications (e.g., 12.5 gauge line wire, 12.5 gauge stay wire, 13 gauge knot wire)
- Zinc Coating: Class 1 (economy) or Class 3 (premium/recommended for permanent installations)
- Roll Length: 50m, 100m, 200m, 330m, or custom length
- Quantity: Number of rolls required for your project
- Destination Port: For accurate freight calculation and delivery timeline
- Application: Livestock type (bulls, cattle, bison, etc.) and terrain conditions for specification recommendations
Send your inquiry now – our factory team provides direct quotations within 12 hours. For technical assistance in selecting appropriate specifications for your livestock type, terrain, and budget, our fencing specialists are available to provide expert recommendations based on your specific high-impact containment requirements. We can also provide installation guidance and post spacing calculations for your project.
Factory Production Process: How We Make Durable Cattle Fence Wire
See our cattle fence wire made right—precision, durability, straight from the factory floor.
