A larger herd expands the coordination problem—not a universal feet-per-head formula. Separate the secure perimeter, permanent divisions, access and phases before counting rolls.
Scale is a planning inputThe dimensions below are invented scenario inputs. They demonstrate a calculation and procurement sequence; they do not prescribe acreage, paddock count, fence specification or stocking rate.
The example in one view
This larger scenario starts with a measured secure perimeter, then adds several permanent divider lines. Temporary break fences, water distribution and day-to-day grazing moves are operational layers; they should not be silently mixed into the permanent-wire purchase quantity.
The map makes the procurement boundary visible: perimeter and permanent dividers are counted here; temporary subdivisions are not. A real plan must also locate water, lanes, handling facilities, environmental exclusions and construction access.
Check the worked math
Secure outer boundary4,600 ft
Permanent divider lines+ 3,200 ft
Gate openings replacing fence line− 84 ft
Net measured fence line7,716 ft
After a selected 5% allowance8,101.8 ft
330 ft rolls, rounded up25 rolls
(4,600 + 3,200 − 84) × 1.05 ÷ 330 = 24.55 → 25 whole rolls. This is a permanent-wire example only. It does not include portable reels, temporary conductors, step-in posts, water systems, handling facilities or project-specific spares.
Replace the assumptions
Use one unit throughout and keep the phase boundary explicit. The result estimates permanent wire length and whole rolls only; it does not infer land carrying capacity, paddock number or structural component counts from 100 cattle.
Starting quantity
—Net measured line
—After allowance
—Whole rolls
Calculating the visible inputs.
Separate the permanent system from operations
Planning layer
Included in this example
Keep separate for review
Phase 1 · secure perimeter
4,600 ft measured before gate deductions
Fence family, legal boundary, sensitive areas, public interfaces, terrain and wildlife considerations
Phase 2 · permanent divisions
3,200 ft added to permanent wire quantity
Paddock purpose, water access, lanes, machinery movement and future reconfiguration
Temporary subdivisions
Excluded
Reels, temporary conductor, step-in posts, training and daily labor plan
Gates and handling access
84 ft of openings deducted
Count, type, swing, vehicle envelope, livestock flow, drainage and hardware
Structural components
Not calculated
Ends, corners, changes of direction, gates, braces, posts and attachments from the approved layout/detail
Procurement phases
25-roll total starting point
Package IDs, release lots, storage, damage holds, installation sequence and change control

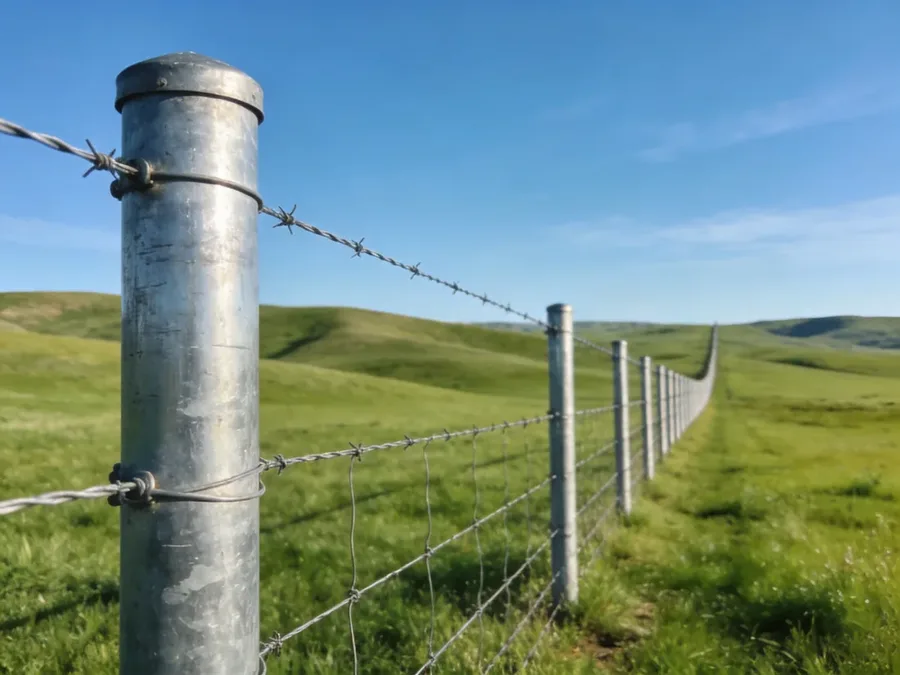

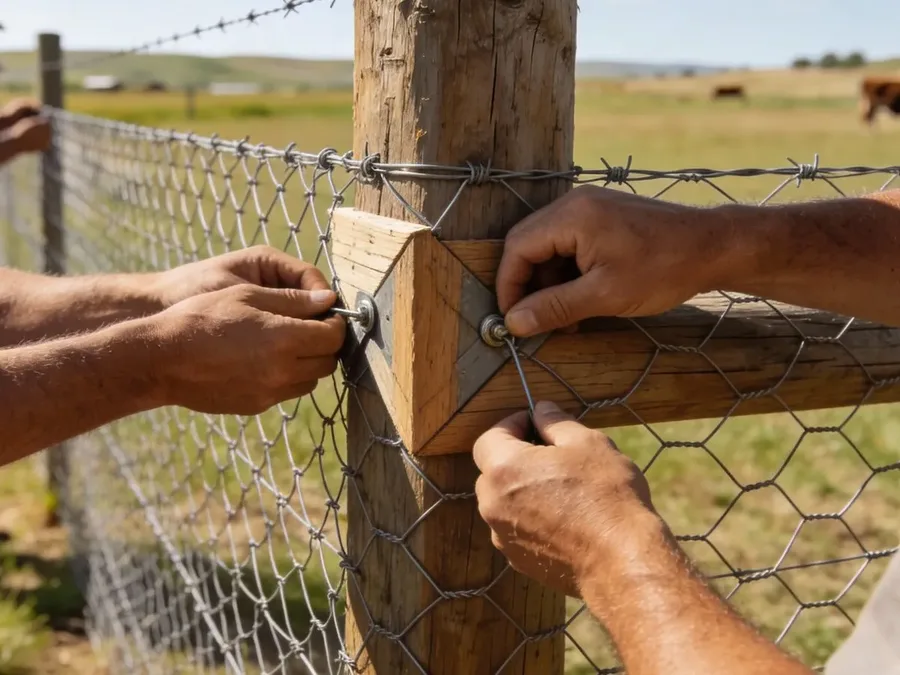

Long routes should be broken into named sections so quantities, access, photographs and changes can be traced. Representative product-family imagery, not a customer project.The roll total does not define attachment, tension, bracing or inspection details. Those decisions belong to the selected system and site-specific plan. Representative installation imagery.
Questions people ask about fencing 100 cattle
How much fence do I need for 100 cattle?
Head count alone cannot answer it. Measure the perimeter, add every permanent division, subtract only true openings, disclose the allowance and divide by the supplier-confirmed roll length. This example produces 7,716 ft net and 25 rolls after its selected allowance.
How many paddocks should 100 cattle have?
There is no universal number. Forage species, growth and recovery, animal class, grazing period, water, labor, terrain and performance goals influence the management plan. This page counts permanent fence only and does not prescribe a rotational grazing system.
Should all internal divisions be permanent?
Not automatically. University extension guidance distinguishes fixed and flexible systems. Permanent frameworks can reduce daily setup, while temporary subdivisions can preserve management flexibility; the right balance depends on the operation and site.
How many gates does a 100-head project need?
Count routes rather than cattle: livestock moves, equipment access, maintenance, emergencies, handling facilities and water. Show every opening on the layout and deduct only its actual width from the corresponding fence line.
Should I order all 25 rolls at once?
That is a procurement decision. Confirm the final route and specification first, then consider packaging, storage, installation phases, color/coating consistency, delivery risk and change control. Keep every release tied to a section and current drawing.
Evidence and limits
NRCS Fence 382 supports layout, gate location, installation details and material quantities, while directing users to current local standards for implementation. Missouri Extension distinguishes perimeter, permanent subdivision and temporary subdivision systems and notes that the same fence layout can serve different carrying capacities. Oklahoma State calculates stocking rate from forage supply and animal demand rather than herd count alone. Penn State identifies topography, gates, lanes and infrastructure as fence-planning inputs. These sources support the workflow; the numerical layout remains an invented example.
